Production possibilities

In the production area of 970m² we have the following technological equipment:

[table colwidth=”200|400″]

Machine; Production possibilities

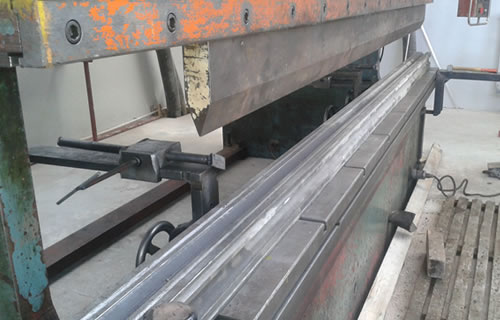

Hydraulic Press-Brake CTO 250;Bending to pressure 250 t and length 4000mm

Straightenning Press CDM 40;Straightenning of parts and subassemblies

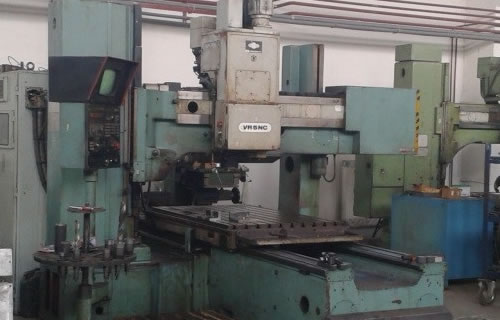

Coordinate Drill Machine VR5NC; Coordinate drilling up to dimensions 1250x1000mm

Radial Drill Machine VO50; Drilling of holes up to diameter 50mm

Radial Drill Machine VO32; Drilling of hole sup to diameter 32mm

Lathe SV18RA; Turning up to diameter Ø 350mm and length 1050mm

Vertical milling maschine FSQ 400; Milling of parts up to dimensions 1150 x 400 x355mm

Grinder doubledisc;

Sawing machine; Cutting material up to diameter 280mm

Welding Maschine; Shielded welding Argomix, standard structural steel class S235 and S355, fine – grained high strength steels in quality S690 and wear resistant steel (HARDOX 400)

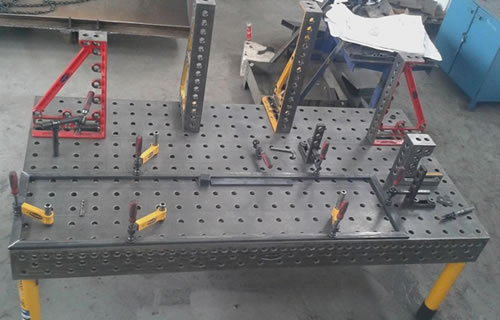

DEMMELER; 3D positioning table for precise and effective setting up and welding steel structure

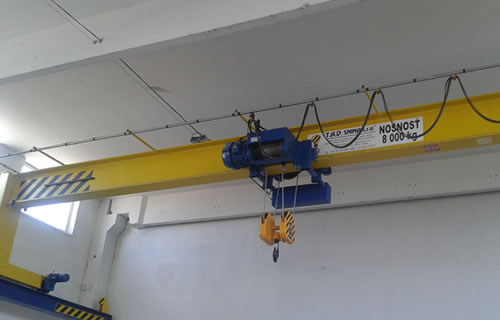

Overhead Crane; up to 8t

Hand Sender; 8 x 4,5 x 4,5m

Positioning plate; 7000 x 2500 x 440

Locksmith plate; 3500 x 2000 x 620, 3000 x 2300 x 620, 2500 x 2000 x 630

Manual Plasma Cutting Machine; Cutting of sheet up to thickness 22mm

[/table]

Surface treatment of welded structures of our production as well as machining and others technological operation, which we are not able to provide in our workshop are provided in cooperation with the best cooperation partners.
